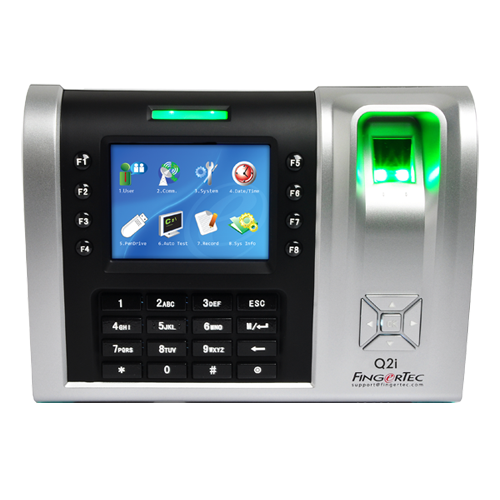

Q2i

Fingerprint Color Door Access System

FingerTec Q2i is a premium security device with advanced time attendance and access control features. Containing a large storage capacity with precision fingerprint scanning algorithm, the Q2i is a suitable time attendance and access control solution for small to large-scaled organizations, especially when paired with the Ingress software, FingerTec’s extensive access control monitoring application. With useful features such and workcodes an short message display, the Q2i is versatile with many customizable features, and several options for you to sync your terminal with a connected PC.

Category:

Description

SPECIFICATIONS
MODEL Q2i
SURFACE FINISHING Acrylonitrile butadiene styrene (ABS)
TYPE OF SCANNER Non coated optical scanner
MICROPROCESSOR 800 MHz
MEMORY 256 MB flash memory and 64 MB SDRAM
ALGORITHM BioBridge VX 9.0 / VX 10.0
PUSH TECHNOLOGY Yes
DIMENSION (L X W X H), mm 200 x 56 x 160
STORAGE
• Fingerprint templates 10000
• Cards 10000
• Transactions 200000
ENROLLMENT & VERIFICATION
• Methods Fingerprint (1:1, 1:N), Card & Password
• Recommended Fingerprint per user ID 2
• Fingerprint placement Any angle
• Verification time (sec) < 1
• FAR (%) < 0.0001
• FRR (%) < 1
CARD TECHNOLOGY
• RFID: 64-bit, 125kHz, RF output power (EN300-330) Yes
• MIFARE: MFIS50/S70, 13.56MHz Make to order
• HID: HID 1325, 26-bit, 125kHz Make to order
COMMUNICATIONS
• Method TCP/IP, RS232, RS485,USB disk (Optional WiFi, GPRS & 3G)
• Baud rates 9600, 19200, 38400, 57600, 115200
• Wiegand 26-bit input/output
OPERATING ENVIRONMENT
• Temperature (°C) 0 ~ 45
• Humidity (%) 20 ~ 80
• Power input DC 12V 3A
TIME ATTENDANCE
• Siren Built- in (Optional – External)
• Work codes Yes
MULTIMEDIA
• Voice Yes
• Display 3.5” 65k color TFT screen
• Short messaging Yes
• Photo ID Yes
ACCESS CONTROL
• EM lock driving output DC12V 3A / relay output
• Alarm output NO / NC
• Antipassback Yes
VOICE / DISPLAY LANGUAGE (TERMINAL) English (Standard), Arabic, Malay, Indonesian, Chinese Traditional / Simplified, Cantonese, Thai, Spanish, Portuguese Portugal / Brazil, French, Russian,German, Italian, Turkish, Persian.
Other languages are available upon request.
