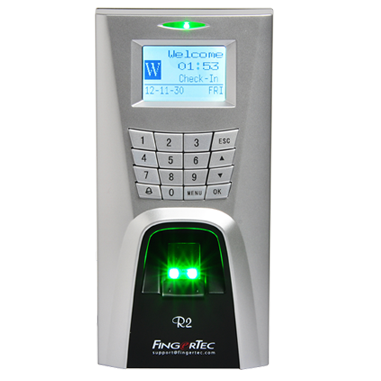

R2

Biometrics Door Access & Time Attendance System

Enhance security in your daily life with biometrics technology, the real proof of one’s identity. Dubbed as FingerTec’s bestselling terminal for access control, the R2 series is the ideal fingerprint system for those looking for security control with practicality. With the combination of R2 and R2c, both entrances and exits are controlled by secured biometrics keys thus providing users with absolute comfort and value for money. FingerTec R2 series also offers the most commonly used communication protocols as well as being equipped with an additional USB port for easy data transfer.

Category:

Description

SPECIFICATIONS
MODEL R2
SURFACE FINISHING Acrylonitrile butadiene styrene (ABS)
TYPE OF SCANNER Non coated optical scanner
MICROPROCESSOR 400 MHz
MEMORY 128 MB flash memory & 32 MB SDRAM
ALGORITHM BioBridge VX 9.0 / VX 10.0
PUSH TECHNOLOGY Yes
DIMENSION (L X W X H), mm 94 x 50 x 189
STORAGE
• Fingerprint templates 3000
• Transactions 120000
ENROLLMENT & VERIFICATION
• Methods Fingerprint (1:1, 1:N), card & password
• Recommended fingerprint per user ID 2
• Fingerprint placement Any angle
• Verification time (sec) < 1
• FAR (%) < 0.0001
• FRR (%) < 1
CARD TECHNOLOGY
• RFID: 64-bit, 125kHz Yes
• MIFARE: MFIS50/S70, 13.56MHz Make to order
• HID: HID 1326, 26-bit, 125kHz Make to order
COMMUNICATIONS
• Method TCP/IP, RS232, RS485, USB disk
• Baud rates 9600, 19200, 38400, 57600, 115200
• Wiegand 26-bit input/output
OPERATING ENVIRONMENT
• Temperature (°C) 0 ~ 45
• Humidity (%) 20 ~ 80
• Power input DC 12V 3A
TIME ATTENDANCE
• Work codes Yes
MULTIMEDIA
• Voice Yes
• Short messaging Yes
ACCESS CONTROL
• EM lock driving output DC 12V 3A / relay output
• Alarm output NO / NC
• Anti passback Yes
VOICE / DISPLAY LANGUAGE
(TERMINAL)
 (only for R2)
English (Standard), Arabic, Indonesian, Chinese Traditional (Cantonese), Chinese Simplified, Vietnamese, Spanish, Portuguese (Portugal), Turkish, Persian.
Other languages are available upon request.
SOFTWARE LANGUAGE Arabic, Bulgarian, Chinese (Simplified), Chinese (Traditional), English, German, Hindi, Indonesian, Kurdish, Malay, Portuguese, Russian, Spanish, Thai, Vietnamese
